TV Lenses, Objectives and Accessories

Mitutoyo Infinity Corrected objectives

2x MPlan Apo (NA 0.055/WD 34mm)
5x MPlan Apo (NA 0.14/WD 34mm)
10x MPlan Apo (NA 0.28/WD 33.5mm)
20x MPlan Apo (NA 0.42/WD 20mm)
50x MPlan Apo (NA 0.55/WD 13mm)

Zoom 7000

6:1 C-mount Macro zoom with Iris, zoom and focus rings. Also illustrated with 60LED ring light (no adapter required).

Megapixel C-mount lenses with locking screws

1” format, f1.4 – 8mm, 12mm, 16mm, 25mm, 35mm, 50mm
1” format, f1.8 – 75mm
2/3” format, f2.8 – 5mm
2/3” format, f1.4 – 8mm, 12mm, 16mm, 25mm
2/3” format, f2 – 35mm
2/3” format, f2.8 – 50mm

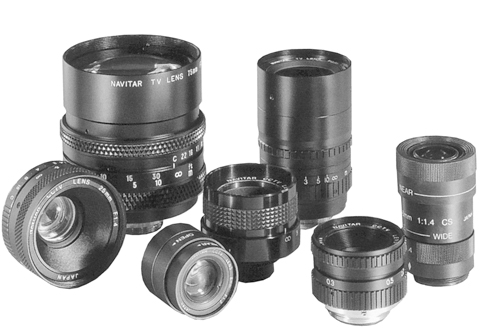

C-mount lenses with locking screws

2/3” format, f1.4 – 6mm, 8mm, 12mm, 16mm,
2/3” format, f1.6 - 25mm, 35mm
2/3” format, f2 – 50mm
2/3” format, f2.5 – 75mm
2/3” format, f2.8 – 100mm

Zoom Lenses, C-mount

DOZ-2x4 – 4 to 8mm f1.4 (1/3”)
DOZ-6x8.5 - 8.5 to 51mm, f1.2 (1/2”)
DOZ-11110 – 11 to 110mm, f1.8 (2/3”)
Zoom 7000E – 12.5 – 75mm f1.8 (2/3”)

FOR HIGH SPEED CAMERAS

C-mount, 1” Format f0.9 – 17mm, 25mm and 50mm
DOZ-10x16 – 16 to 160mm, f2 (1”)

10:1 C-mount Macro zoom with locking screws on iris, zoom and focus rings. Also illustrated with 60LED ring light (adapter recommended)

Extension Tube Set

40, 20, 10, 5, 1 and 0.5mm extension tubes to increase magnification.

Extenders

50 or 100% increases in magnification of C -mount lenses
1.5 x extender
2 x extender

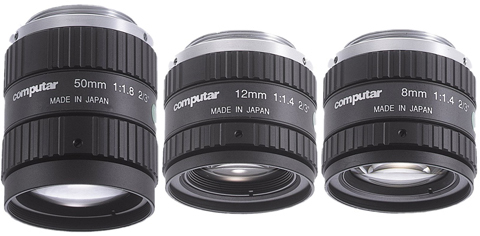

Computar Machine Vision Lenses

(C-mount with locking screws, 2/3”)
M7528-MP…..75mm F2.8 Megapixel
M5018-MP2…50mm F1.8 Megapixel
M2514-MP2…25mm F1,4 Megapixel

M1614-MP2…16mm F1.4 Megapixel
M1214-MP2…12mm F1.4 Megapixel
M0814-MP2…8mm F1.4 Megapixel
M0514-MP2…5mm F1.4 Megapixel ½”, focus 0.1 to 0.9m
