Monitors, Stands and Accessories

The monitors below will accept a composite or S-video signal from a PAL or NTSC camera. These video signals can also be connected to computer for image capture with the appropriate converter. USB2 and GigE cameras connect directly to a computer

Hard Glass TFT Monitors - 5 sizes
15" (1024 x 768)/ 17" (1280 x 1024 )
19" (1280 x 1024)/ 20" (1600 x 1200)
22” Wide Screen (1680 x 1050)
Aluminium Housing, 29 pin DVI, S-video,
CVBS jack & 15 pin d-sub, 100 - 240 Vac
Plus NEW 17” and 19” LCD monitors (1280 x
1024) with plastic housings and BNC inputs

Quality XY Gliding Stages

Large - 395 x 395mm with 350 x 270mm travel 8.05 kg,
Medium - 292 x 235mm with 200 x 100mm travel 4.5kg,
Black anodised surfaces with x-y lock screws

8” TFT LCD Monitor
800 x 600 pixels
Brightness – 300cd/m squared
Contrast ratio – 500
Metal housing
12v supply, BNC and S-VHS inputs

Graduated Mechanical stage over dimmerable LED microscope base.

Suitable for working with Navitar
Zoom Lenses systems and Meiji Stereo Microscopes.
Adapter available to connect base to XY stage.

Powersolve PSP-24-15-01

12v dc 2A, psu, 90v -264vinput, 34 x 97 x 45mm.
UK, USA, Euro & Australian input plugs, 2.1mm output plug on 1.8m lead

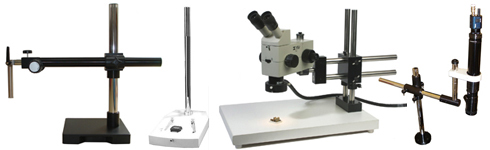

Boom Stand

Approx data - 500mm (l) x 500mm (h)
Horizontal arm has rack/pinion movement
Base 250 x 250mm – Total weight 15kg
Spigots can be 20mm, 25mm or 30mm dia
Spigot has variable angle adjustment.

Pole stand with 20mm dia column.

Shown with optional column extension.
Many accessories available.

Ultra Stable Stand. Can be bench mounted or supplied on 600 x 400mm board (as illustrated)

Long Reach Stand for Optical Benches.

25mm Ø x 400mm Column
20mm Ø x 400mm Hor. Arm
4 x fixing holes in base
Many accessories available

Video Quad processor

Connect up to four cameras (BNC) to one monitor
Brightness & Contrast adjustable, NTSC and PAL
185 x 45 x 150 mm, 520g, 12vdc
